Flat spotlight 153
Powerful LED floodlight for demanding outdoor areas
Compact LED floodlight with high output - ideal for industry, architecture and outdoor areas.
The LED floodlight 153 from SILL was developed for demanding outdoor lighting tasks - from façade lighting to industrial areas. With high light output, precise optics and a wide range of mounting options, the luminaire offers maximum flexibility. Designed for extreme conditions, it stands for reliability, efficiency and architectural quality.
The compact and powerful 153 series luminaires offer energy-efficient lighting solutions for indoor and outdoor areas with the highest safety requirements.
Chemical and sealing conditions
Robust materials: Housing made of corrosion-resistant die-cast aluminium
High degree of protection IP65 (dust and water jet protected)
Swivelling mounting arm
Long service life and easy maintenance: service life of the LED modules = 100,000 hours (L90/B10).
Maintenance-friendly: Easy access to components for maintenance and replacement.
High degree of protection IP65 (dust and water jet protected)
Swivelling mounting arm
Long service life and easy maintenance: service life of the LED modules = 100,000 hours (L90/B10).
Maintenance-friendly: Easy access to components for maintenance and replacement.
Precise light control for demanding applications
Form follows (light) function:
The 153 series is a design classic for applications such as airports, railway stations, multi-purpose halls, inner-city squares and
Swimming pools.
The SILL 153 impresses with precise and uniform light distribution with a wide range of beam angles.
The 153 series is a design classic for applications such as airports, railway stations, multi-purpose halls, inner-city squares and
Swimming pools.
The SILL 153 impresses with precise and uniform light distribution with a wide range of beam angles.
Flexibly customisable thanks to modular design
Thanks to its modular design, the luminaire can be individually configured - from the light colour and optics to the mounting accessories. The SILL 153 adapts flexibly to the respective application and offers maximum design freedom for planners and architects.
Robust, durable and maintenance-free
With an IP65 protection rating and high-quality die-cast aluminium design, the luminaire is ideal for long-term outdoor use. The SILL 153 defies the most adverse weather conditions and impresses with its long service life without the need for maintenance.
Powerful LED system with up to 15,000 lm
Equipped with state-of-the-art LED technology, the SILL 153 delivers high light outputs of up to 15,000 lumens. The efficient passive cooling ensures consistently high performance - even in continuous operation or in demanding ambient conditions.
Smart lighting control via DALI-D4
The 153 series can be optionally equipped with Sensor Ready drivers, NEMA sockets and sensors (Zhaga Book 18 compliant). Suitable for accommodating, recognising and controlling compatible sensor modules for wireless communication with modern smart city systems.
Applications for the Flat spotlight 153 luminaire
Infrastructure
Bridge lighting
Station lighting
Subway lighting
Pavement lighting
Lighting in public places
Car park lighting
Industry
Lighting of production yards
Warehouse lighting
Lighting of factory entrances
Sport and leisure
Swimming pool and indoor pool lighting
Lighting for sports halls and gymnasiums

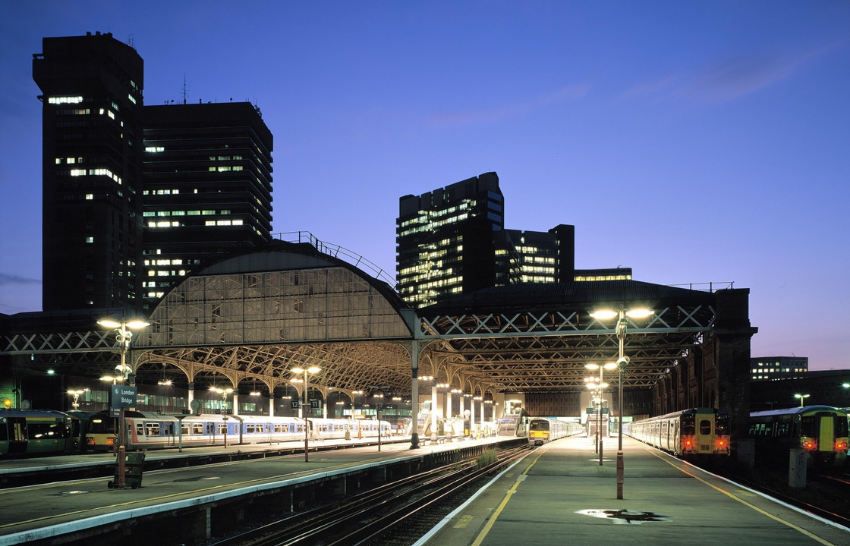

Product shown in situ
Accessories
Protective devices
Protective grille
845400700
Glare limitation
Louvre cover, horizontal
845300900
Louvre cover, vertical
845301000
Mounting accessories
Pole attachment, for 1 90° flat floodlight without bracket with pole diameter 76 mm
84531000
Pole attachment, for 2 flat floodlights 180° without bracket with pole diameter 76 mm
84532180
Pole attachment, for 2 flat floodlights 90° without bracket with pole diameter 76 mm
84532090
Pole attachment, for 3 flat floodlights 120° without bracket with pole diameter 76 mm
84533120
Pole attachment, for 3 flat floodlights 90° without bracket with pole diameter 76 mm
84533090
Pole attachment, for 4 flat floodlights 90° without bracket with pole diameter 76 mm
84534090
Mast clamp, diameter 114 mm
845300200
