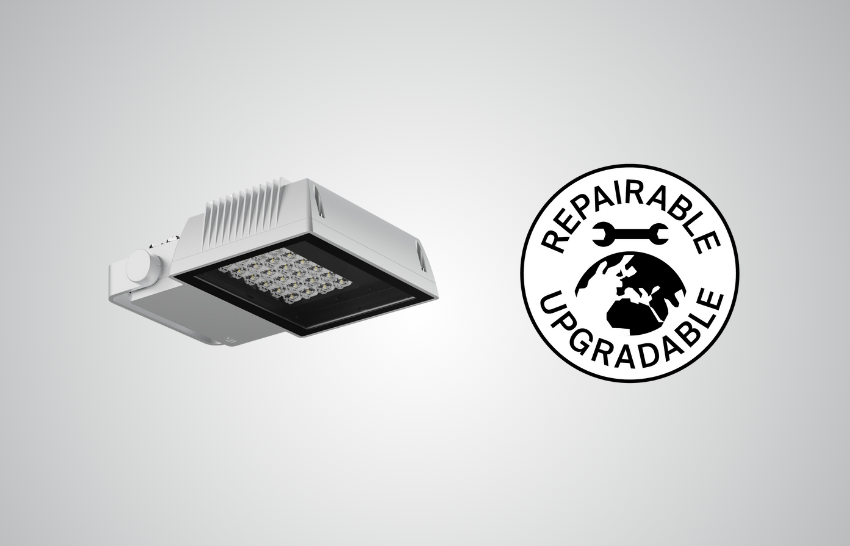

SILL 48
Long-life LED floodlight for industry and infrastructure
Durable and flexible LED floodlight for illuminating industry and infrastructure indoors and outdoors
The SILL 48 LED floodlight stands for reliable performance, sustainable technology and maximum flexibility. Available in three housing sizes, it impresses with its high luminous efficacy, modular design and wide range of accessories.
The 48 series therefore meets the requirements for efficiency, durability and safety for use in demanding environments such as bridges, railway stations, harbours and industrial areas - even under extreme conditions up to 55 °C ambient temperature.
The 48 series offers three sizes for maximum flexibility in different applications and mounting environments
Chemical load and tightness
Robust materials: Housing made of corrosion-resistant die-cast aluminium
High protection class IP65 (dust and water jet protected)
High protection class IP65 (dust and water jet protected)
Thermal, mechanical and electrical loads
Long service life and easy maintenance: service life of the LED modules = 100,000 hours (L90/B10)
Maintenance-friendly: Easy access to components for maintenance and replacement
Accessories for shielding and light control
Use at ambient temperatures up to +55 °C
Maintenance-friendly: Easy access to components for maintenance and replacement
Accessories for shielding and light control
Use at ambient temperatures up to +55 °C
Amber light for sensitive areas
In addition to classic light colours, the SILL 48 is also available in a special amber version. This insect-friendly spectrum is particularly suitable for use in near-natural habitats, coastal regions or harbour facilities - even in difficult visibility conditions such as fog or haze.
Customisable thanks to accessories
Whether wall, pole or ceiling mounting - a wide range of fixings and accessories make it particularly easy to integrate the SILL 48 into existing systems.
Anti-glare devices or shielding flaps direct the light precisely and prevent annoying glare, and can also be retrofitted.
This modularity creates planning security and flexibility - even for later adaptations. This means that your lighting solution remains sustainable, standard-compliant and economical.
Anti-glare devices or shielding flaps direct the light precisely and prevent annoying glare, and can also be retrofitted.
This modularity creates planning security and flexibility - even for later adaptations. This means that your lighting solution remains sustainable, standard-compliant and economical.
Flexible for various applications
Whether rotationally symmetrical or asymmetrical light distribution - the SILL 48 can be precisely customised to the respective lighting task. In combination with three housing sizes and various mounting options, it is the ideal solution for customised lighting concepts both indoors and outdoors.
Built for demanding environments
The SILL 48 was developed for use in demanding conditions. Thanks to its IP65 protection rating, it is reliably protected against dust and water jets. Its performance remains constant even at high ambient temperatures of up to 45 °C or 55 °C - ideal for industrial plants, tunnels or outdoor areas with high thermal requirements.
Sustainable design - modular construction
The SILL 48 not only impresses with its performance, but also with its sophisticated, future-proof design. Thanks to its modular design, LED modules and control gear can be easily replaced - for a longer service life, minimised downtimes and a particularly maintenance-friendly, resource-saving solution.
Applications for the light SILL 48
Industry
Lighting for production halls
Warehouse lighting
Lighting of assembly areas
Infrastructure
Car park lighting
Lighting in public places
Station lighting
Harbour lighting: Lighting of terminals and docks
The product in use
Our services
Design and manufacture in Germany
The product is developed and manufactured in Germany using sustainable components and materials, most of which come from Europe, in a short production cycle. The production, assembly and inspection of each luminaire is carried out by our teams and is fully traceable.
5-year warranty, regardless of the conditions of use
Also valid for continuous operation around the clock at the maximum operating temperature of the product - proof of our unwavering commitment to our customers!
Fully and sustainably repairable
In contrast to disposable products, our lights are designed to have a long service life even under difficult conditions. We carefully select the components for our lights and are committed to supplying spare parts over the long term.
You can also find all the information you need in our PDF, which you can download here.
DownloadAccessories
Apertures
Four-sided cover, for model 48S
849S00200
Four-sided cover, for model 48M
849M00200
Four-sided cover, for model 48L
849L00200
Three-sided cover, for model 48S
849S00500
Three-sided cover, for model 48M
849M00500
Three-sided cover, for model 48L
849L00500
Panels with adjustable louvres
Vertical slats, for model 48S
849S00400
Vertical louvre blades, for model 48M
849M00400
Vertical louvre blades, for model 48L
849L00400
Horizontal louvre blades, for model 48S
849S00300
Horizontal louvre blades, for model 48M
849M00300
Horizontal louvre blades, for model 48L
849L00300
Grid
Honeycomb louvre, for model 48M
849M02000
Honeycomb louvre, for model 48L
849L02000
Wire guard, for model 48M
849M00100
Wire guard, for model 48L
849L00100
Dimming doors
4-fold barn doors, for model 48M
849M00600
Opening barn doors, for model 48M
849M00700
Opening barn doors, for model 48L
849L00600
Filters and optics
Horizontal grooved glass, type 555 B, for model 48S
849S02300
Horizontal grooved glass, type 555 B, for model 48M
849M02300
Horizontal grooved glass, type 555 B, for model 48L
849L02300
Vertical grooved glass, type 555 B, for model 48S
849S02400
Vertical grooved glass, type 555 B, for model 48M
849M02400
Vertical grooved glass, type 555 B, for model 48L
849L02400
Structured glass Albarino S, for model 48S
849S02600
Structured glass Albarino S, for model 48M
849M02600
Structured glass Albarino S, for model 48L
849L02600
Mounting bracket
Vibration-damped mounting bracket, for model 48S
849S01000
Vibration-damped mounting bracket, for model 48M
849M01000
Vibration-damped mounting bracket, for model 48L
849L01000
Mast clamp
Pole clamp stainless steel v2a / hot-dip galvanised, for pole diameter 115-120mm, for models 48S/M/L
855500200-120
Pole clamp stainless steel v2a / hot-dip galvanised, for pole diameter 150-170mm, for models 48S/M/L
855500200-170
Pole clamp stainless steel v2a / hot-dip galvanised, for pole diameter 55-60mm, for models 48S/M/L
855500200-60
Pole clamp stainless steel v2a / hot-dip galvanised, for pole diameter 60-89mm, for models 48S/M/L
855500200-89
Ground spike
Ground spike, L=300mm, for models 48S/M
849000900
Wall bracket
Wall bracket, L=0.5m, for models 48S/M
849000500
Wall bracket, L=0.5m, for model 48L
849400500
Mast bracket
Mast bracket black, for mast diameter 80-120mm, for models 48S/M
849000700
Mast bracket black, for mast diameter 80-120mm, for models 48L
849400700
