SILL 177

High-power industrial luminaire for illuminating large outdoor areas

Powerful industrial floodlight for illuminating large outdoor areas in demanding environments

The sustainable illumination of large areas over long distances is a task for specialists. Thanks to state-of-the-art LED technology, the SILL 177 offers an impressive output of 150,000 lm with maximum uniformity. Where safety is the top priority, absolute reliability counts: the one-piece IP65 housing protects reinforced industrial electronics that guarantee continuous operation even in exposed outdoor areas.

The SILL 177 floodlight offers efficiency, safety and durability for reliable lighting solutions in demanding environments.

Chemical load and tightness

Robust materials: Housing made of corrosion-resistant die-cast aluminium
High degree of protection IP65 (dust and water jet protected)

Thermal, mechanical and electrical loads

Overvoltage protection up to 10Kv
Precise optics: high uniformity, homogeneous light distribution to avoid shadows and reflections
Long service life and easy maintenance: service life of the LED modules = 100,000 hours (L90/B10)
Use at ambient temperatures up to +55 °C

Robust design for extreme weather conditions

Thanks to its corrosion-resistant aluminium housing and IP65 protection rating, the SILL 177 floodlight is protected against dust and splash water. It works reliably in a temperature range from -40 °C to max. +55 °C and is therefore ideal for use in demanding outdoor areas.

Durable and reliable - for long-term use under extreme conditions

The SILL 177 is designed for maximum durability: passive thermal management, integrated overheating protection and robust corrosion protection ensure reliable performance even at +55 °C ambient temperature. Its solid aluminium housing and robust construction guarantee a long service life - even in the most demanding environments such as ports, industrial plants or large outdoor areas.

High-performance LED technology for maximum brightness

With its advanced LED technology, the SILL 177 luminaire offers an impressive light output of up to 126,000lm lumen at 5,700 K colour temperature. This high luminosity guarantees excellent illumination of large areas and ensures optimum visibility in demanding environments.

Energy efficiency thanks to integrated control unit

The luminaire is available in three power levels: 550 W, 750 W and 965 W. This allows the lighting solution to be precisely adapted to the respective requirements - from uniform ambient lighting to intensive illumination of large industrial areas.
DALI compatibility also enables intelligent lighting control, which can lead to energy savings and a longer service life for the luminaire.

Flexible mounting options for versatile applications

Equipped with a swivelling steel bracket, the SILL luminaire 177 enables simple and flexible installation. This versatility allows the luminaire to be optimally aligned to fulfil specific lighting requirements in different environments.

Responsible outdoor lighting - ecologically and efficiently planned

The 177 series combines ecological responsibility with economic efficiency. The focus here is on using light only where it is actually needed.
Particular attention is paid to avoiding glare, stray light and light emissions above the luminaires. Warm light colours with a low blue light component protect the environment and nocturnal animals in particular. The use of luminaires with a high protection rating also helps to prevent insects from entering.

Applications of this projector

Car park lighting
road lighting
Harbour lighting: Lighting of terminals and docks

The product in use

SILL excellence

Designed and manufactured in France

This product is designed and manufactured in France, using sustainable components and materials originating predominantly from Europe. The production cycle is short and the supply chain is controlled. The manufacture, assembly and testing of every single headlight are carried out by our teams in France and are fully traceable.

5-year warranty, regardless of the conditions of use

Also valid for continuous operation around the clock at the maximum operating temperature of the product - proof of our unwavering commitment to our customers!

Fully and sustainably repairable

Unlike disposable products, our headlights are designed for a long service life, even under difficult conditions. We carefully select the components for our headlights and are committed to providing spare parts over the long term.

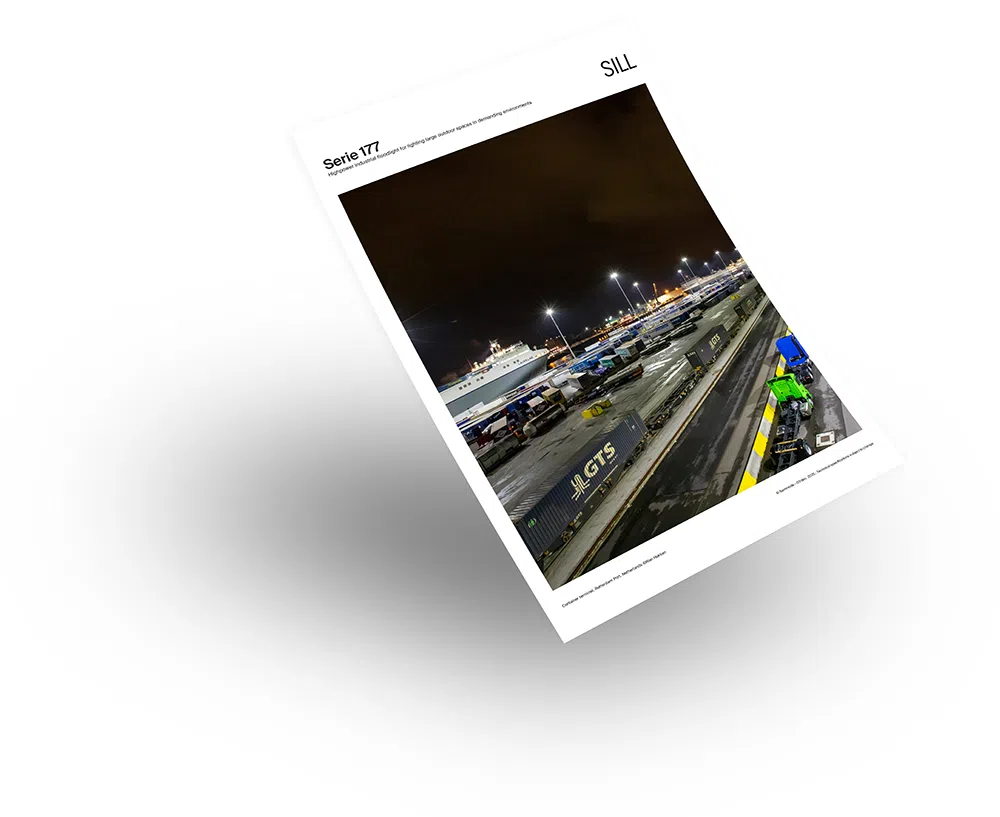

All information can also be found in our PDF,
which we are pleased to offer you for download.
Download

Warm white 3000K version, ideal for outdoor lighting

CRI70, 3000K, 100 000 h L90B10 @25°C.

Watt Light distribution Luminous flux (lm)** T max Designation Article no.
450 Asymmetric deep - Imax 67° 56800 55°C 177 50-70k 730 D AS125-67 AL 1775450WW70D
450 Very Wide Flood 100° 61000 55°C 177 50-70k 730 D VWB100 AL 177F450WW70D
450 Wide beam 65° 61900 55°C 177 50-70k 730 D WB65 AL 1774450WW70D
600 Asymmetric deep - Imax 67° 71400 45°C 177 60-85k 730 D AS125-67 AL 1775600WW70D
600 Very Wide Flood 100° 76600 45°C 177 60-85k 730 D VWB100 AL 177F600WW70D
600 Wide beam 65° 77800 45°C 177 60-85k 730 D WB65 AL 1774600WW70D
750 Asymmetric deep - Imax 67° 87600 40°C 177 75-105k 730 D AS125-67 AL 1775750WW70D
750 Very Wide Flood 100° 94000 40°C 177 75-105k 730 D VWB100 AL 177F750WW70D
750 Wide beam 65° 95400 40°C 177 75-105k 730 D WB65 AL 1774750WW70D
965 Asymmetric deep - Imax 67° 110900 40°C 177 95-130k 730 D AS125-67 BK 1775965WW70D
965 Very Wide Flood 100° 119000 40°C 177 95-130k 730 D VWB100 BK 177F965WW70D
965 Wide beam 65° 120800 40°C 177 95-130k 730 D WB65 BK 1774965WW70D

**Luminous flux emitted from the luminaire. These references are ideal for converting conventional floodlights to 400 W and 1000 W metal halide or sodium vapour lamps while reducing the installed quantity.***Version 965 W: optimised heat dissipation thanks to black painted surfaces and blades that increase the heat exchange surface.

Options

525 W
675 W

2700K
4000K
5700K

spot 15°
medium 25°
flood 50°
elliptical 15° x 50°

black RAL9005
silver RAL9006
Corrosion protection treatment

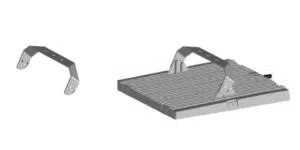

Accessories

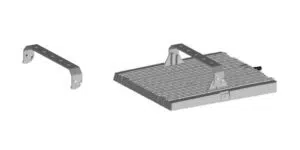

Ceiling mounting

Swivelling bracket -20°/+20°
817700200

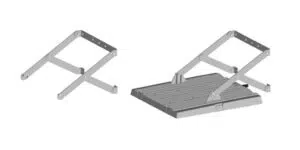

Truss fastening

Swivelling bracket 0°/+40°
817700300

Wall bracket

Swivelling bracket
817700400

Technical specifications

Light source

LED module with high efficiency
3000K (also from 2700K, 4000K, 5700K)
CRI > 70 (also from CRI > 80)
SDCM < 3
100,000 h L90/B10 at 25° C
50 000 h L80/B10 at maximum room temperature

Optics

High-performance lenses for enhanced uniformity
ULR : 0 %

Lighting comfort

Version WB65: UGR ≤ 22
Version VWB100 ; 450 to 600W : UGR ≤ 25
Version VWB100 ; 675 to 750W : UGR ≤ 28

Thermal management

Automatic light control in the event of overheating
Version 965 W: optimised heat dissipation through black-painted surfaces and blades that increase the heat exchange surface area.

Electronics

Integrated ECG 'Industry', addressable via DALI protocol, flicker-free
450W : 2 addresses
600W : 3 addresses
750W : 4 addresses
965W : 5 addresses
Withstands voltage surges up to 8kV (except 450W: 10kV)

Mains voltage

220-240V 0/50/60Hz

Protection class

Class I

Operating temperature

450W: -40°C to +55°C
600W: -40°C to +45°C
750W : -40°C to +40°C
965W: -40°C to +40°C

Connection

Supplied with a Wieland® plug-in connector 5×2.5 mm², for cable diameters of 6 mm–10 mm

Fastening

Wall, truss and ceiling mount (separate necessary accessories to be ordered)

Maintenance

LED modules and drivers easy to expand
Smooth housing surface without cooling fins – low cleaning effort (except version 965W)

Weight

450W : 37.2kg / 600W : 37.9kg / 750W : 38.9kg / 965W : 43.6kg

windage area

0.75m²

Protective disc

ESG toughened safety glass

Housing

Very high mechanical, chemical and corrosion resistance
Die-cast aluminium housing (AlSi12 with low copper content)
Unpainted aluminium (except version 965W: painted black RAL 9005)

Conformity

Manufactured in accordance with DIN VDE 0711 / EN 60598, CE

Sealing

IP65

IK rating

IK06 (except version 965W : IK10)

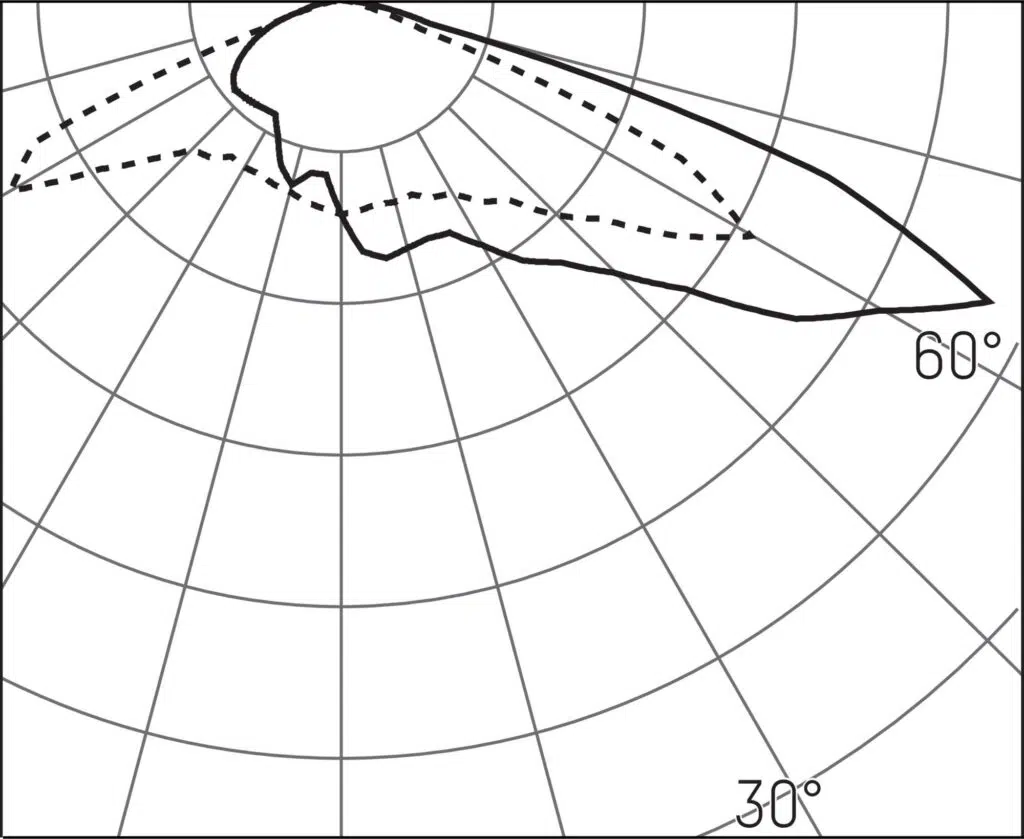

Asymmetric with long range (AS125-67)

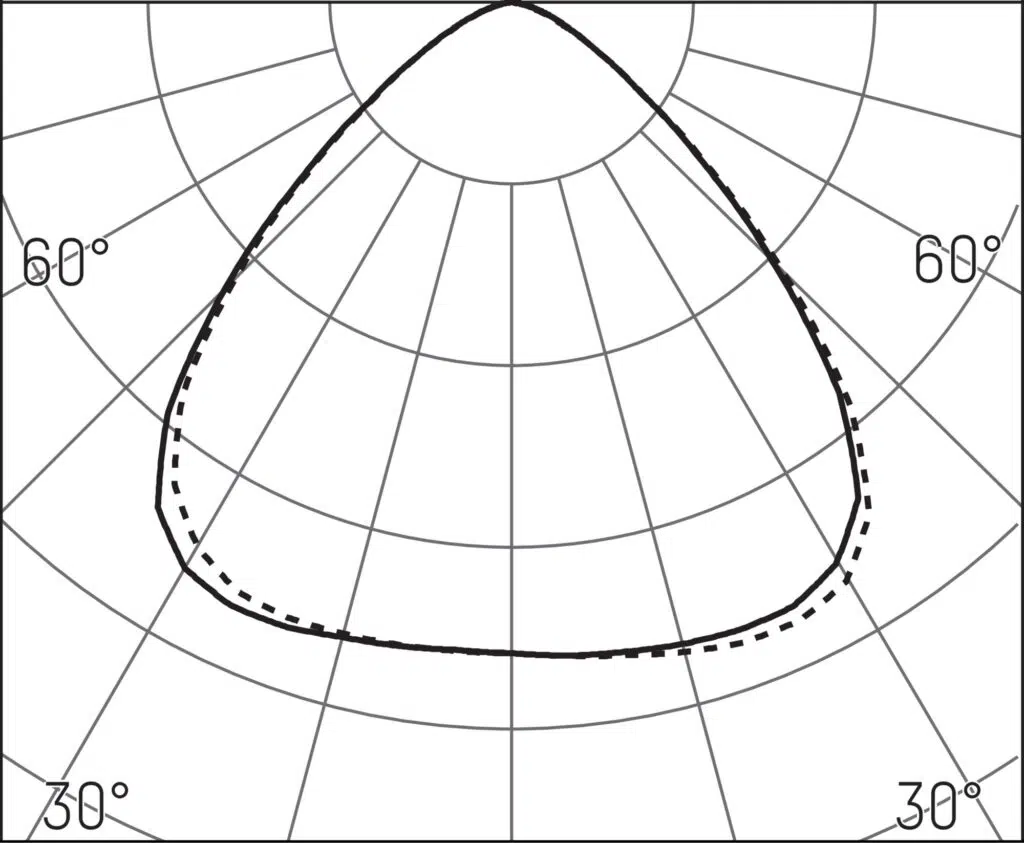

Very Wide Beam 100° (VWB100)

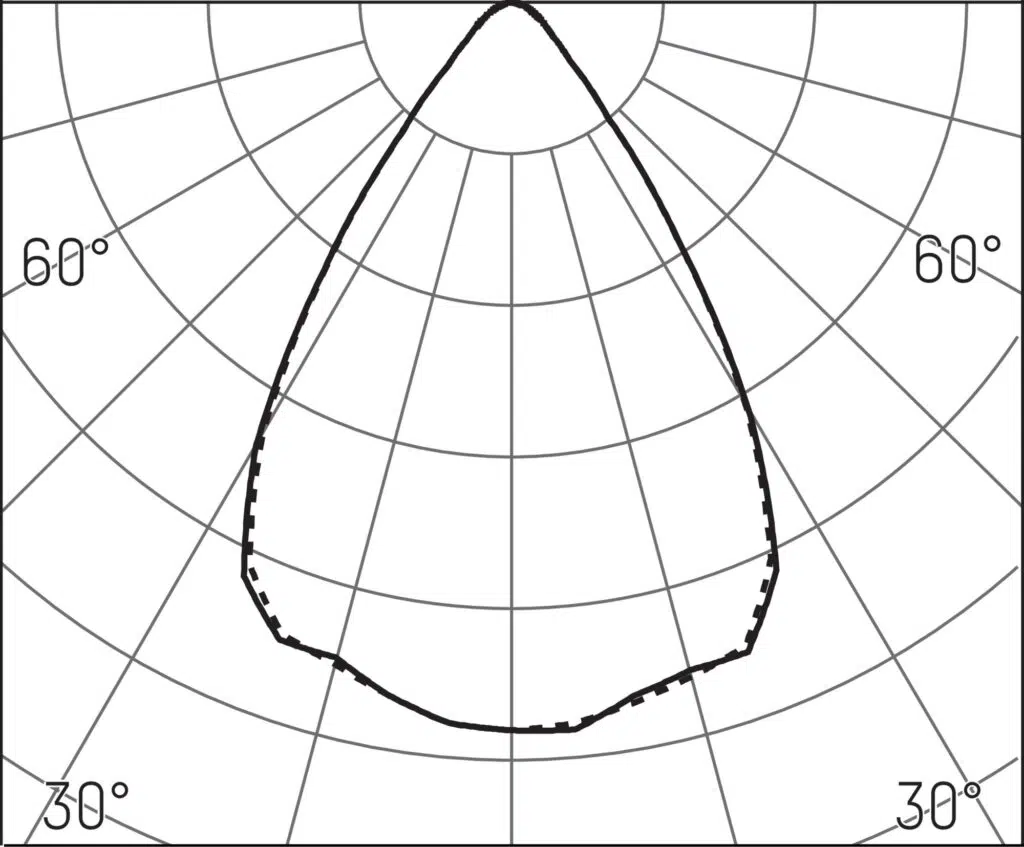

Wide flood 65° (WB65) Other light distribution available: please contact us
