SILL 176

Industrial floodlights for extreme indoor and outdoor conditions

Powerful pendant and ceiling light for illuminating indoor and outdoor infrastructures in extreme environments

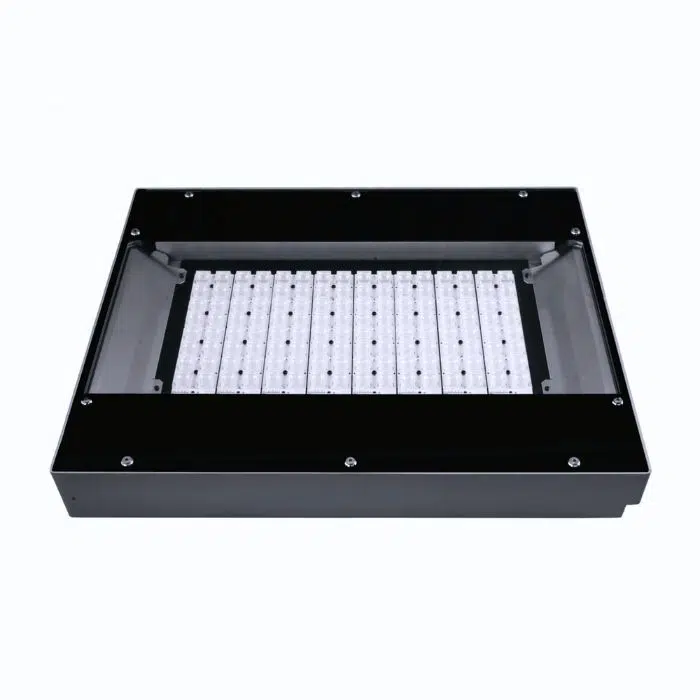

The 176 series is equally suitable for pendant and ceiling luminaires or can be mounted on crossbars and is primarily designed for a long service life. The extremely flat IP65 housing contains highly reliable electronics that ensure exceptional longevity. Thanks to the removable plug and mounting accessories, the projector is easy to install and maintain. This versatile and highly efficient solution is ideal for multifunctional halls and large industrial areas, both indoors and outdoors.

The 176 series is a powerful, standard-compliant and extremely durable lighting system for industrial and sports facilities - with minimal maintenance requirements.

Chemical load and tightness

Robust materials: Housing made of corrosion-resistant die-cast aluminium
High degree of protection IP65 (dust and water jet protected)

Thermal, mechanical and electrical loads

Precise optics: high uniformity, homogeneous light distribution to avoid shadows and reflections
High colour rendering (CRI ≥ 80) for reliable material and colour recognition
Long service life and easy maintenance: service life of the LED modules = 100,000 hours (L90/B10).
Use at ambient temperatures up to +45 °C
Maintenance-friendly: Easy access to components for maintenance and replacement
Ball-proof

Robust design for challenging conditions

Thanks to its robust design, the 176 luminaire is ideal for use in demanding environments. Its functionality is maintained even under difficult conditions, making it the ideal choice for industrial applications.

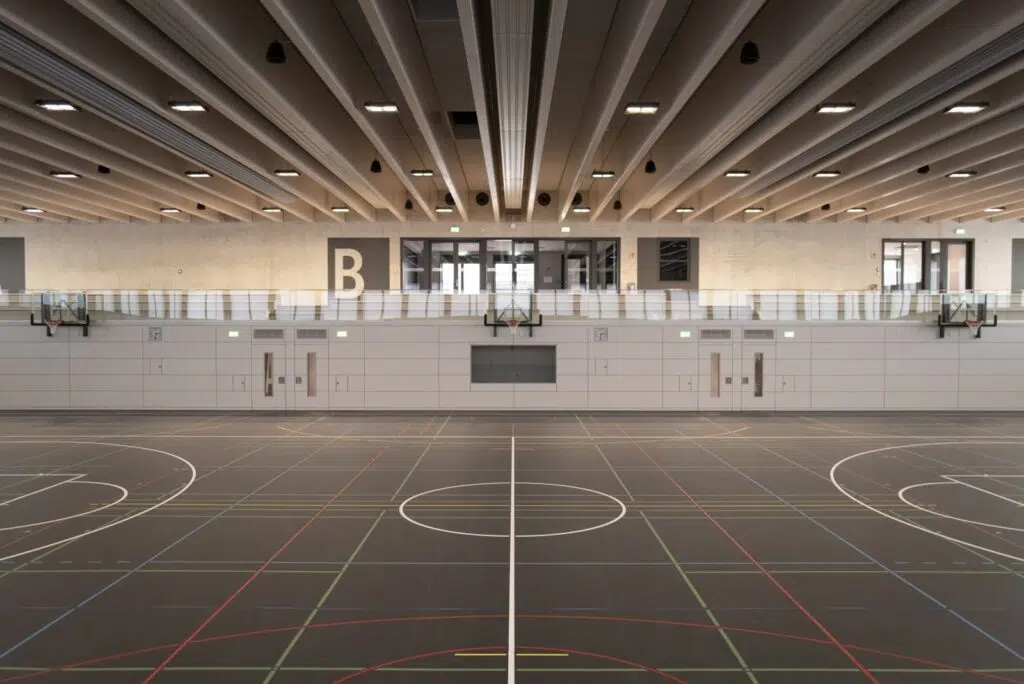

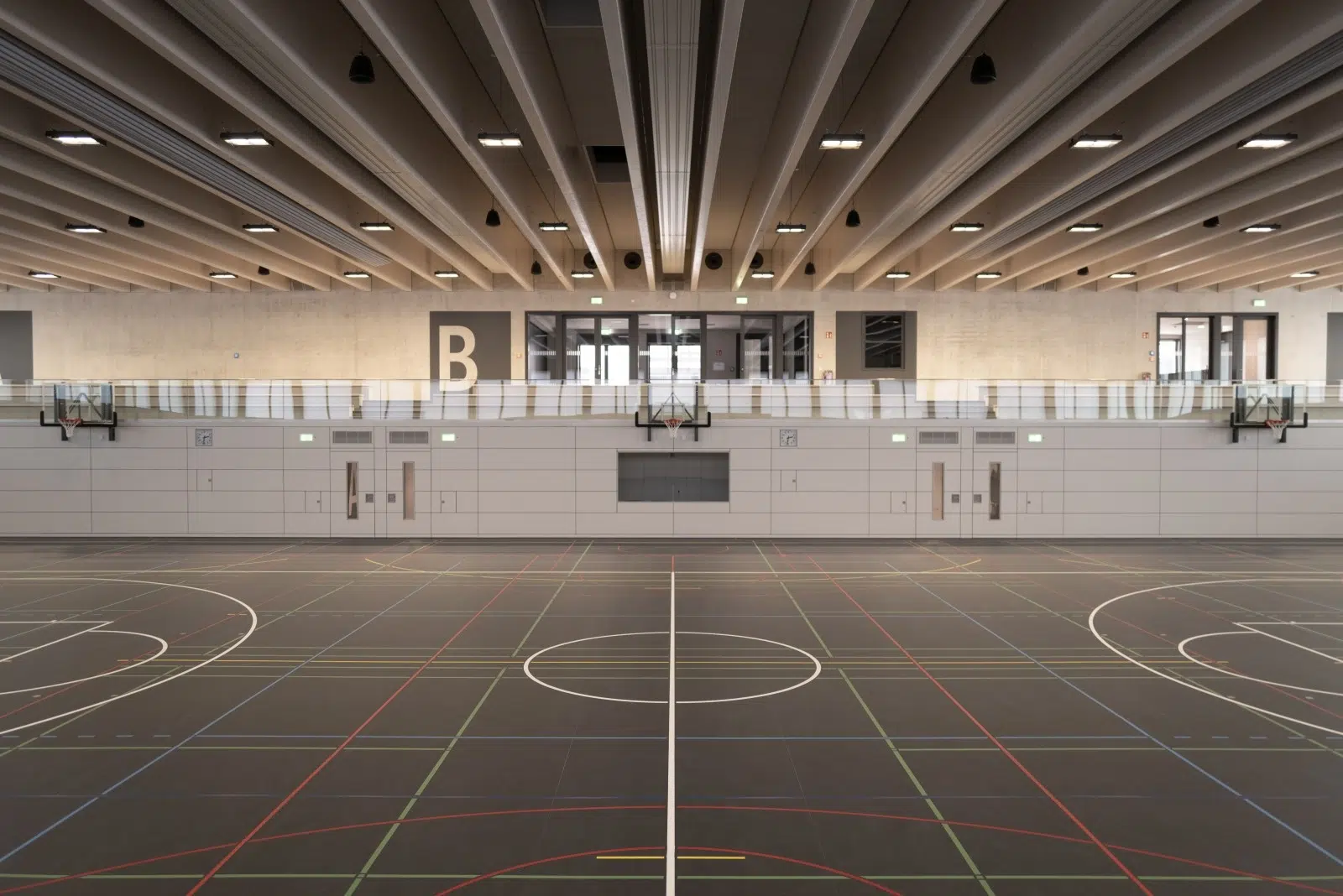

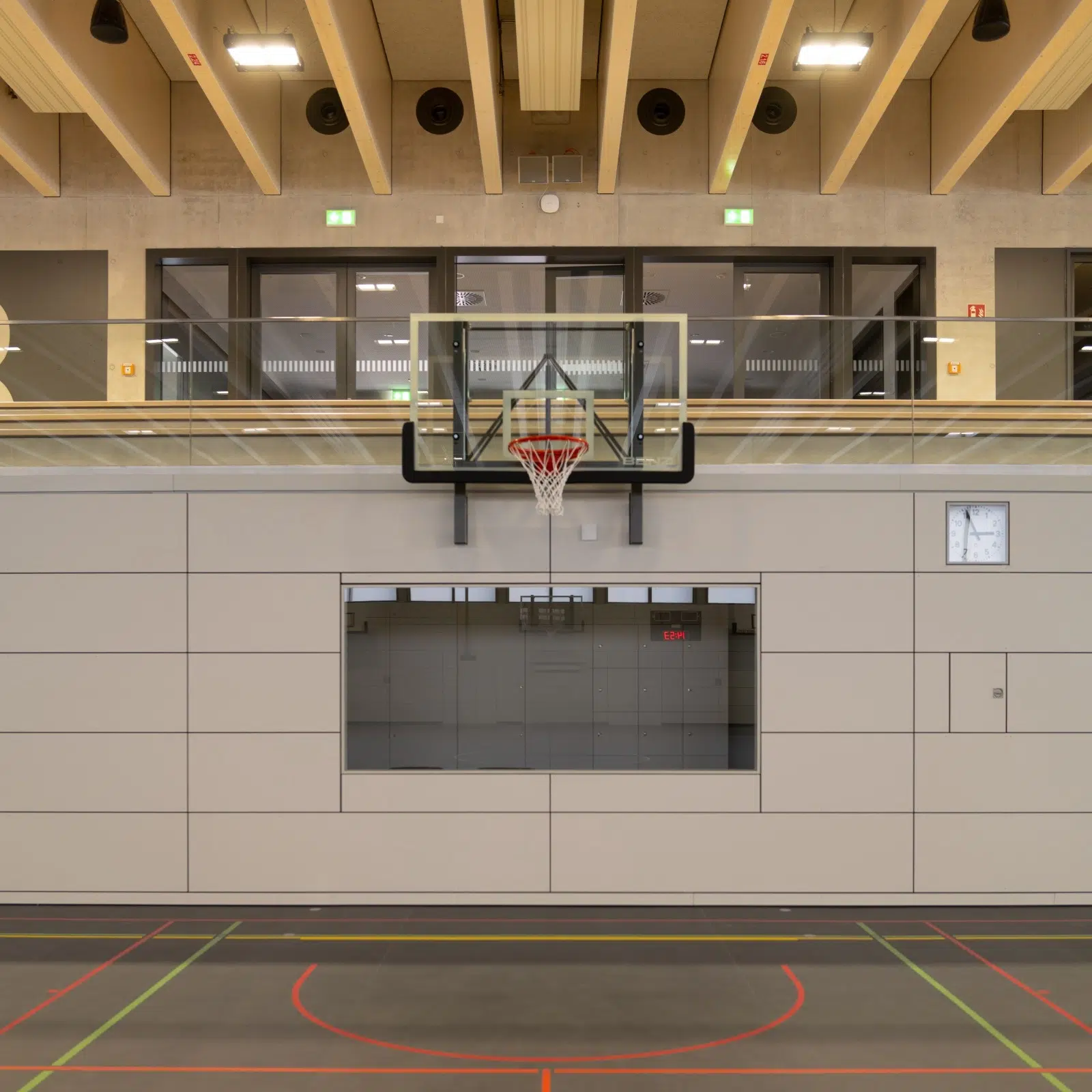

Ball-proof lighting for sports halls

The SILL 176 is a robust, ball-proof luminaire for use in sports halls and gymnasiums. The toughened safety glass provides reliable protection against hits while ensuring a consistently high quality of light. The SILL 176 therefore combines maximum safety with high-performance LED technology - for lighting that can withstand any game.

Flexible lighting technology with high efficiency

Equipped with symmetrical and asymmetrical lighting technologies in three power levels (150W, 250W, 350W), the 176 luminaire offers up to 40,000 lumens of luminous flux. This enables flexible adaptation to different lighting requirements at heights from 6 metres.

Light characteristics for demanding areas and maximum safety

The SILL 176 luminaire was specially developed for use in swimming pools, sports and industrial halls. Its special light characteristics ensure optimum illumination of these demanding areas while guaranteeing safety and efficiency.

Reliable in demanding environments

With its IP65 protection rating, the SILL 176 is dustproof and protected against water jets - ideal for use in damp or demanding environments such as swimming pools. The robust design and enclosed housing ensure long-lasting, safe operation even under difficult conditions. The SILL 176 therefore also provides reliable light where other lights reach their limits.

Durability thanks to innovative thermal management

The 176 luminaire has passive thermal management and integrated overheating protection for the LED module. These technologies ensure a long service life for the luminaire and therefore significantly reduce maintenance and replacement costs.

High visual comfort thanks to glare reduction

Thanks to precise light control, the 176 luminaire minimises unwanted glare and increases visual comfort for users. At the same time, the targeted light control enables efficient illumination of work areas with reduced energy consumption.

Applications for the light SILL 176

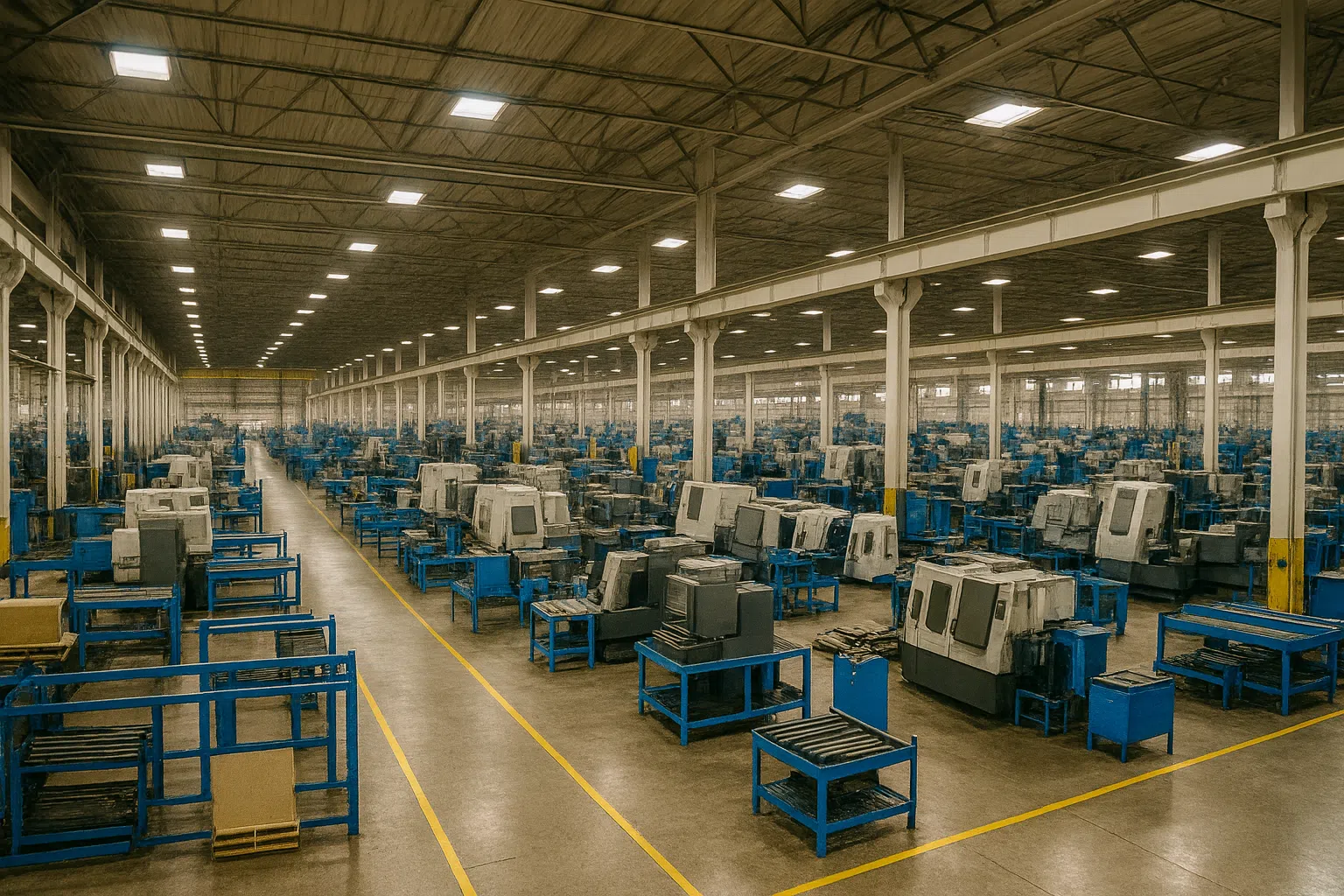

Industry

Lighting for production halls
Warehouse lighting
Lighting of assembly areas

Sport and leisure

Sports hall lighting
Training room lighting
Spectator stand lighting
Swimming pool lighting

The product in use

Our services

Design and manufacture in Germany

The product is developed and manufactured in Germany using sustainable components and materials, most of which come from Europe, in a short production cycle. The production, assembly and inspection of each luminaire is carried out by our teams and is fully traceable.

5-year warranty, regardless of the conditions of use

Also valid for continuous operation around the clock at the maximum operating temperature of the product - proof of our unwavering commitment to our customers!

Fully and sustainably repairable

In contrast to disposable products, our lights are designed to have a long service life even under difficult conditions. We carefully select the components for our lights and are committed to supplying spare parts over the long term.

You can also find all the information you need in our PDF, which you can download here.

Download

Warm white 3000K version, ideal for outdoor lighting

CRI70, 3000K, 50 000 h L80B10 @Tmax.

Watt	Light distribution	Luminous flux (lm)**	T max	Designation	Article no.
150	Asymmetric deep - Imax 67°	16800	45°C	176 15-25k 730 D AS125-67 SL	1765150WW70D
150	Very Wide Beam 100°	19600	45°C	176 15-25k 730 D VWB100 SL	176F150WW70D
150	Wide beam 65°	20100	45°C	176 15-25k 730 D WB65 SL	1764150WW70D
200	Asymmetric deep - Imax 67°	22800	45°C	176 20-30k 730 D AS125-67 SL	S1760075
200	Very Wide Beam 100°	26600	45°C	176 20-30k 730 D VWB100 SL	S1760078
200	Wide beam 65°	27300	45°C	176 20-30k 730 D WB65 SL	S1760077
250	Asymmetric deep - Imax 67°	26800	45°C	176 25-35k 730 D AS125-67 SL	1765250WW70D
250	Very Wide Beam 100°	31300	45°C	176 25-35k 730 D VWB100 SL	176F250WW70D
250	Wide beam 65°	32100	45°C	176 25-35k 730 D WB65 SL	1764250WW70D
350	Asymmetric deep - Imax 67°	37100	35°C	176 35-50k 730 D AS125-67 SL	1765350WW70D
350	Very Wide Beam 100°	43400	35°C	176 35-50k 730 D VWB100 SL	176F350WW70D
350	Wide beam 65°	44500	35°C	176 35-50k 730 D WB65 SL	1764350WW70D

**Luminous flux emitted from the luminaire. These references are ideal for converting conventional floodlights to 250 W and 400 W metal halide or sodium vapour lamps while reducing the installed quantity.

Neutral white 4000K version, ideal for interior lighting

CRI70, 4000K, 50 000 h L80B10 @Tmax.

Watt	Light distribution	Luminous flux (lm)**	T max	Designation	Article no.
150	Asymmetric deep - Imax 67°	17800	45°C	176 15-25k 740 D AS125-67 SL	1765150NW70D
150	Very Wide Beam 100°	20800	45°C	176 15-25k 740 D VWB100 SL	176F150NW70D
150	Wide beam 65°	21300	45°C	176 15-25k 740 D WB65 SL	1764150NW70D
200	Asymmetric deep - Imax 67°	24200	45°C	176 20-30k 740 D AS125-67 SL	S1760079
200	Very Wide Beam 100°	28300	45°C	176 20-30k 740 D VWB100 SL	S1760081
200	Wide beam 65°	29000	45°C	176 20-30k 740 D WB65 SL	S1760080
250	Asymmetric deep - Imax 67°	28400	45°C	176 25-35k 740 D AS125-67 SL	1765250NW70D
250	Very Wide Beam 100°	33200	45°C	176 25-35k 740 D VWB100 SL	176F250NW70D
250	Wide beam 65°	34100	45°C	176 25-35k 740 D WB65 SL	1764250NW70D
350	Asymmetric deep - Imax 67°	39300	35°C	176 35-50k 740 D AS125-67 SL	1765350NW70D
350	Very Wide Beam 100°	46100	35°C	176 35-50k 740 D VWB100 SL	176F350NW70D
350	Wide beam 65°	47200	35°C	176 35-50k 740 D WB65 SL	1764350NW70D

Accessories

Y Plug connection IP68 Plug connection, for double connection

For cable Ø10-14mm ; 5x1.5mm² max

817600400

Mounting bracket (x4)

For ceiling mounting

817600200

Y-steel cable suspension

2x 4 m wire rope with loop

817600100

Wall and ceiling bracket

Swivelling bracket -92°/+39°

817600300

Technical specifications

Technical characteristics

Light source

LED module with high efficiency
3000K and 4000K (also from 5700K)
CRI > 70 (also from CRI > 80)
SDCM < 3
50 000 h L80/B10 at maximum room temperature

Optics

High-performance lenses for increased uniformity
ULR : 0 %

Lighting comfort

Version WB65 : UGR ≤ 22
Version VWB100 : UGR ≤ 28 (except 150W : UGR ≤ 25)

Thermal management

Automatic light control in the event of overheating

Electronics

Integrated ECG 'Industry', addressable via DALI protocol, Flicker Free
150 to 250W : 2 addresses
350W : 3 addresses
Tolerates voltage peaks up to 10kV (except 200W : 8kV)

Mains voltage

220-240V 0/50/60Hz

Protection class

Class I

Operating temperature

-40°C to +45°C (except 350W : -40°C to +35°C)

Simple installation and maintenance

Connection

Supplied with a Wieland® plug connection 5×2.5 mm², for cable diameters 6mm-10mm

Fastening

Wall and ceiling bracket (separate accessories to be ordered)

Maintenance

LED modules and drivers easy to expand
Smooth housing surface without cooling fins - low cleaning effort

Weight

19.5kg

Area exposed to wind

0,03 m²

Material

Protective disc

ESG toughened safety glass

Housing

Very high mechanical, chemical and corrosion resistance
Housing made of die-cast aluminium (AlSi12 with low copper content)
Painted silver RAL 9006 (also available in black or white)
Pre-treatment against corrosion as an option
