Sill 48 Xtrem

Extremely hard-wearing and versatile LED floodlight for extreme areas

Industrial floodlights for illuminating infrastructures under extreme indoor and outdoor conditions

Lighting large industrial facilities requires precision, durability and reliability. The SILL 48 Xtrem floodlights have been developed for the toughest environments and have a corrosion-resistant, one-piece housing with IP65 protection and extremely robust electronics. They are designed for intensive use at high temperatures of up to 50°C. Their precision optics provide uniform illumination from great heights. Better light for more safety in all your industrial applications, both indoors and outdoors.

The Sill 48 Xtrem luminaire meets the high demands of the industry

Chemical load and tightness

Corrosive substances, acid vapours
Salty atmospheres, crash waves
UV radiation and weather influences
Dust exposure, humidity
Dust exposure, extreme soiling
Moisture in all its forms
Very hot, humid or dry atmosphere
High pressure cleaning
Hygiene regulations according to IFS, BRC and HACCP

Thermal, mechanical and electrical loads

Continuous operation up to 50 °C
Temperature fluctuations
Mechanical shocks
Voltage peaks up to 8 kV, overvoltages

Exceptional durability of the materials

The Sill 48 Xtrem has an anti-corrosion treatment that provides high resistance in corrosive environments such as those found in the food industry, harbours, mineral processing and other coastal industries.

Durability of the electronics, even in the event of intensive use at 50 °C

The LED light source was selected for its efficiency and exceptional longevity, which is over 100,000 hours even with intensive round-the-clock use at a continuous temperature of 50 °C. The LED driver can withstand voltage peaks of up to 8kV, making the luminaire suitable for high-risk power grids.

Permanently waterproof thanks to IP65 for dirty, damp or exposed environments.

With its IP65 protection rating, the Sill 48 Xtrem offers high resistance to dust and water, including splashing water from several directions, making it ideal for complicated environments such as in the food industry or other areas exposed to dust or water ingress.

In black or white, depending on the intended industrial application

Two specialised versions are available: The black version is designed for extreme industrial sectors. Equipped with a resistant tempered glass pane and a highly efficient 3000 K or 4000 K light source, it can withstand extreme conditions. The white version, on the other hand, is perfect for hygienically demanding environments such as the food industry. With a CRI > 80, it delivers first-class light quality and is particularly safe thanks to its polycarbonate lens.

Significant operating cost savings guaranteed

Our solution is designed to last for the next 10 years without any intervention. This ensures massive savings in operation and maintenance, especially in locations that are difficult to reach - such as crane systems or extensive industrial halls.

Applications of this projector

Automotive industry: Lighting of production halls

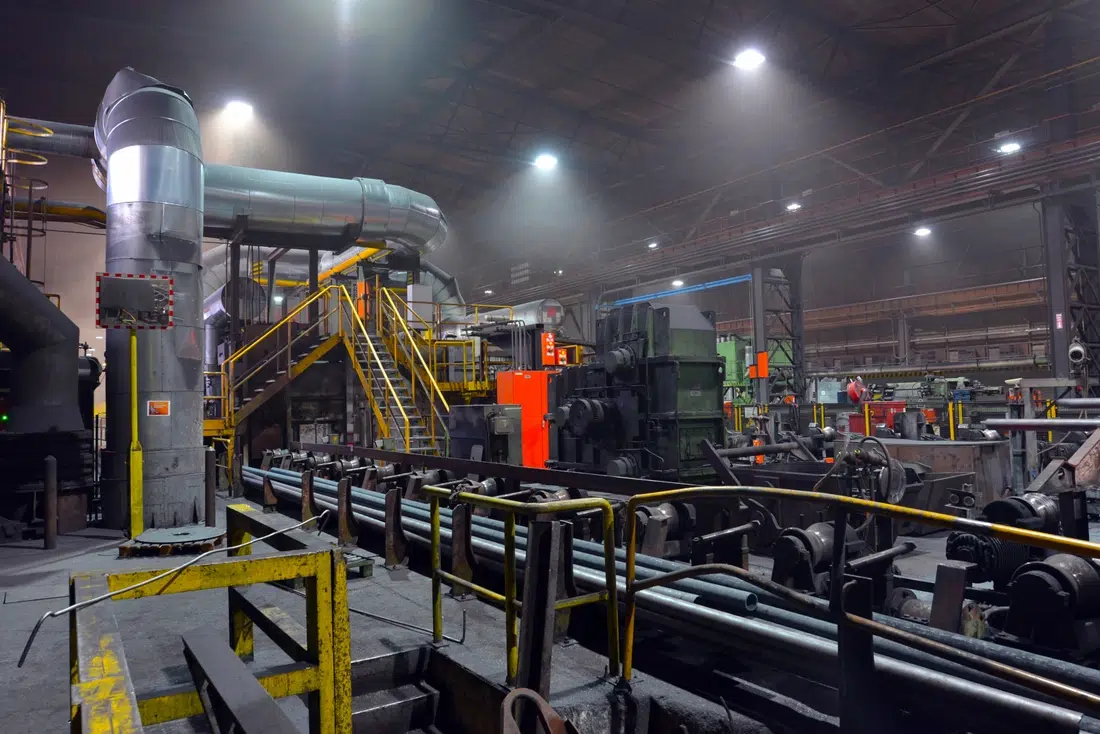

Steelworks: lighting of workshops
Mining: illumination of excavators and conveyor belts
Lighting for loading ramps

Thermal power station: General lighting
Nuclear power plant: Lighting of the engine room and walkways
Sewage treatment plant: Exterior lighting

Sugar factory: Lighting of conveyor areas
Lighting of outdoor areas at all heights
Lighting of high-bay inspection or food processing areas

Station: lighting of the platforms and outdoor areas
Airport: Lighting of halls and terminals

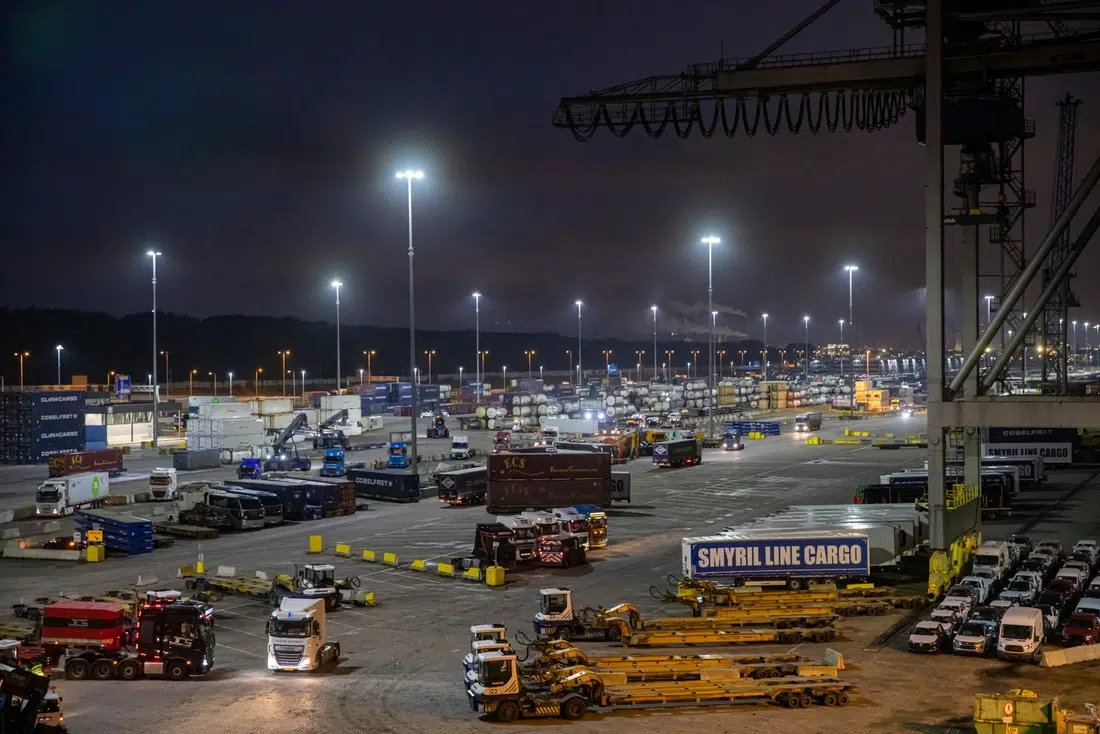

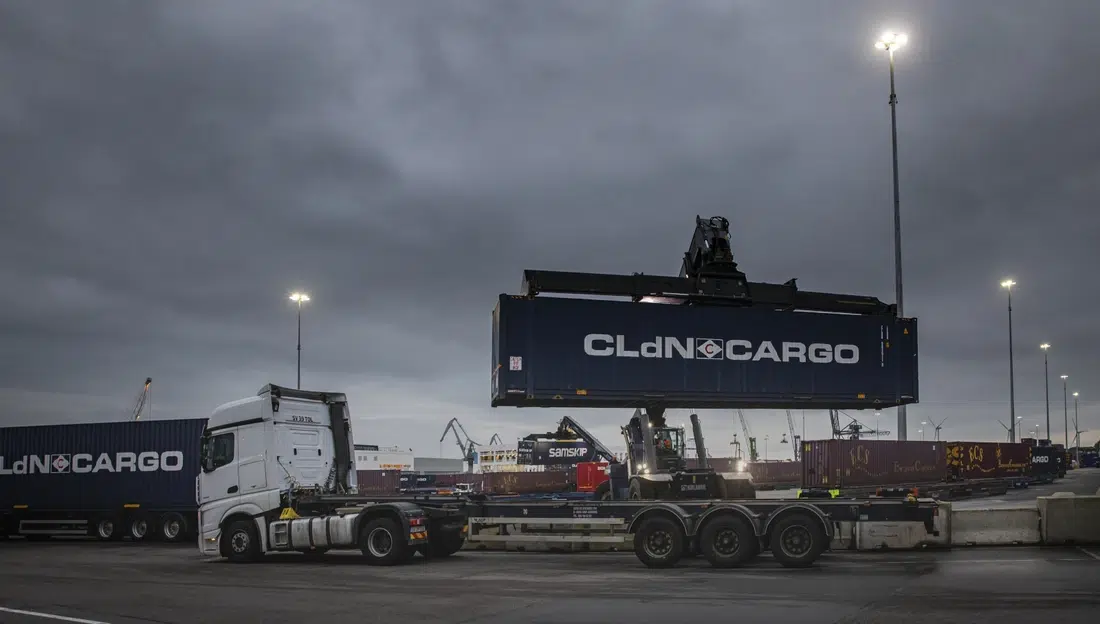

port terminal: lighting of the area around quays, hoisting machines and loading cranes

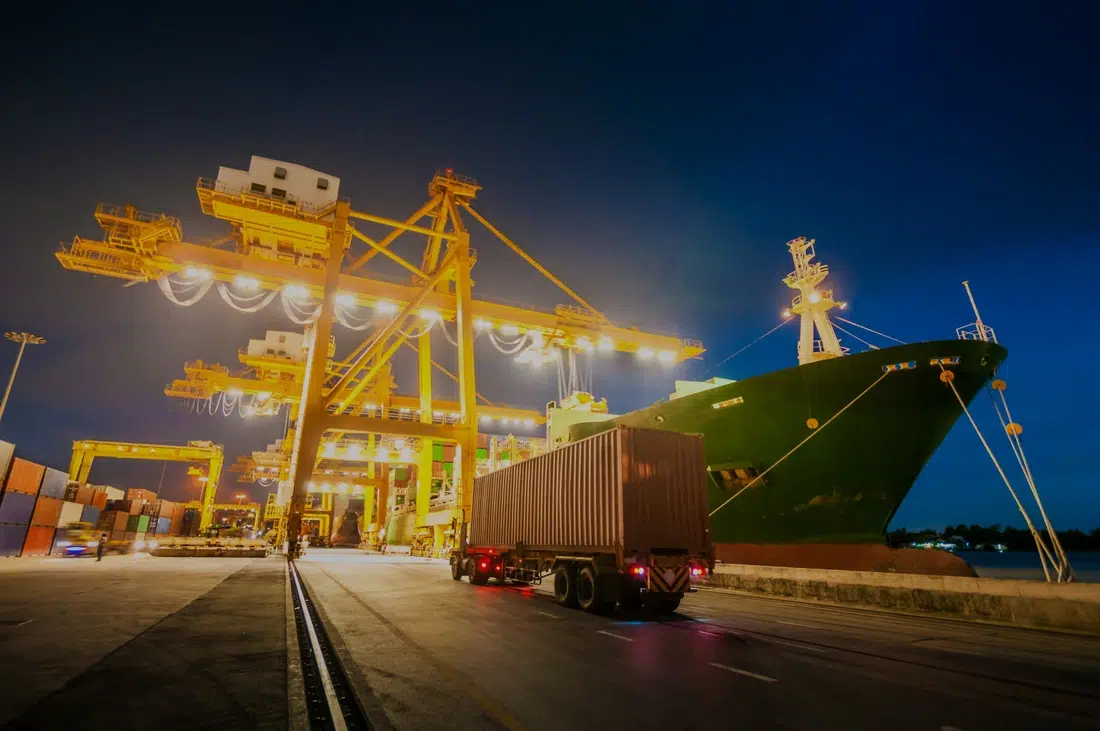

The product in use

SILL excellence

Designed and manufactured in France

This product is designed and manufactured in France, using sustainable components and materials originating predominantly from Europe. The production cycle is short and the supply chain is controlled. The manufacture, assembly and testing of every single headlight are carried out by our teams in France and are fully traceable.

8-year ultimate warranty, regardless of the conditions of use

Also valid for continuous operation around the clock at the maximum operating temperature of the product - proof of our unwavering commitment to our customers!

Fully and sustainably repairable

Unlike disposable products, our headlights are designed for a long service life, even under difficult conditions. We carefully select the components for our headlights and are committed to providing spare parts over the long term.
All information can also be found in our PDF,
which we are pleased to offer you for download.
Download

Black version with safety glass

CRI70, 4000K, anti-corrosion treatment. 100 000 h L80B10 @Tmax.

Size Watt Light distribution Luminous flux (lm)** T max Designation Article no.
S48M 60 Asymmetric deep - Imax 67° 5940 50°C 48M 4-7k 740 D AS125-67 BK-C S48M0165
S48M 60 Asymmetrical batwing - Imax 23° 7370 50°C 48M 4-7k 740 D AS120-23 BK-C S48M0255
S48M 60 Wide beam 65° 6800 50°C 48M 4-7k 740 D WB65 BK-C S48M0015
S48M 80 Asymmetric deep - Imax 67° 7360 45°C 48M 6-9k 740 D AS125-67 BK-C S48M0077
S48M 80 Asymmetrical batwing - Imax 23° 9130 45°C 48M 6-9k 740 D AS120-23 BK-C S48M0019
S48M 80 Wide beam 65° 8430 45°C 48M 6-9k 740 D WB65 BK-C S48M0020
S48L 120 Asymmetric deep - Imax 67° 14780 50°C 48L 8-16k 740 D AS125-67 BK-C S48L0203
S48L 120 Asymmetrical batwing - Imax 23° 14970 50°C 48L 8-16k 740 D AS120-23 BK-C S48L0025
S48L 120 Wide beam 65° 16670 50°C 48L 8-16k 740 D WB65 BK-C S48L0026
S48L 140 Asymmetric deep - Imax 67° 16390 45°C 48L 10-19k 740 D AS125-67 BK-C S48L0288
S48L 140 Asymmetrical batwing - Imax 23° 16600 45°C 48L 10-19k 740 D AS120-23 BK-C S48L0289
S48L 140 Wide beam 65° 18490 45°C 48L 10-19k 740 D WB65 BK-C S48L0219

** Luminous flux emitted from the luminaire. These references are ideal for the 1:1 conversion of conventional spotlights with 70W, 150W, 250W metal halide or sodium vapour lamps.



White version with polycarbonate cover

CRI80, 5700K, anti-corrosion treatment, ideal for the food industry. 100 000 h L80B10 @Tmax.

Size Watt Light distribution Luminous flux (lm)** T max Designation Article no.
S48M 80 Asymmetric deep - Imax 67° 6710 45°C 48M 6-9k 857 D AS125-67 WH-C PC S48M0124
S48M 80 Asymmetrical batwing - Imax 23° 8320 45°C 48M 6-9k 857 D AS120-23 WH-C PC S48M0025
S48M 80 Wide beam 65° 7680 45°C 48M 6-9k 857 D WB65 WH-C PC S48M0026
S48M 60 Asymmetric deep - Imax 67° 5420 50°C 48M 4-7k 857 D AS125-67 WH-C PC S48M0257
S48M 60 Asymmetrical batwing - Imax 23° 6730 50°C 48M 4-7k 857 D AS120-23 WH-C PC S48M0258
S48M 60 Wide beam 65° 6210 50°C 48M 4-7k 857 D WB65 WH-C PC S48M0259
S48L 120 Asymmetric deep - Imax 67° 13620 50°C 48L 8-16k 857 D AS125-67 WH-C PC S48L0141
S48L 120 Asymmetrical batwing - Imax 23° 13800 50°C 48L 8-16k 857 D AS120-23 WH-C PC S48L0031
S48L 120 Wide beam 65° 15370 50°C 48L 8-16k 857 D WB65 WH-C PC S48L0032
S48L 140 Asymmetric deep - Imax 67° 15060 45°C 48L 10-19k 857 D AS125-67 WH-C PC S48L0290
S48L 140 Asymmetrical batwing - Imax 23° 15250 45°C 48L 10-19k 857 D AS120-23 WH-C PC S48L0291
S48L 140 Wide beam 65° 16990 45°C 48L 10-19k 857 D WB65 WH-C PC S48L0292

** Luminous flux emitted from the luminaire. These references are ideal for rooms that require a very high quality of light (control areas, painting areas, etc.).
or areas for food processing).

Accessories

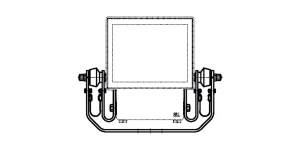

Vibration-damping bracket

For the 48M model
849M01000
For the 48L model
849L01000

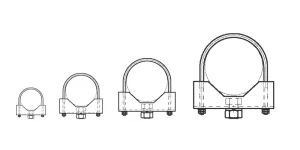

Mast clamp

For mast ø55-60mm
855500200-60
For masts ø60-89 mm
855500200-89
For masts ø115-120 mm
855500200-120
For masts ø150-170 mm
855500200-170

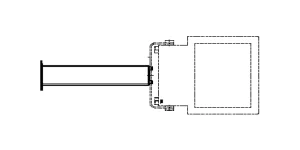

Wall bracket offset by 500 mm

For the model 48M
849000500
For the 48L model
849400500

Adjustable slats

Vertical louvre blades, for model 48M
849M00400
Vertical louvre blades, for model 48L
849L00400
Horizontal louvre blades, for model 48M
849M00300
Horizontal louvre blades, for model 48L
849M00300

Technical specifications

Light source

LED module with high efficiency
4000K and 5700K (Also available in 2700K, 3000K, Amber)
CRI > 70 and CRI > 80
SDCM < 3
100 000 h L80/B10 at maximum room temperature

Optics

High-performance lenses for improved uniformity
ULR: 0 %

Lighting comfort

UGR ≤ 22 (WB65 version)
Various optical accessories are available upon request (louvres, honeycombs, etc.)

Thermal management

Automatic light control in the event of overheating

Electronics

1 integrated ECG 'Industry', addressable via DALI protocol, flicker-free
Driver high reliability with constant current output, mechanically and thermally reinforced
Resistance to overvoltage: 320 V AC, 48 hrs
Fully compatible with TN, TT and IT neutral systems
Electronics compatible with central source
Resists voltage surges < 6kV

Mains voltage

220-240V 0/50/60Hz

Protection class

Class I

Operating temperature

-40°C to +50°C (except 80W and 140W: -40°C to +45°C)

Connection

2 brass cable glands M20 (clamping range: Ø 8-12 mm)
Via fixed two-tier terminal block 2 x 5 x 2.5 mm²

Fastening

Wall and ceiling mount (accessory for mounting on a shaft or pole)
Swivelling range ± 90°

Maintenance

LED modules and drivers easy to expand

Weight 8M

5.2kg / 48L : 14.4kg

windage area

48M : 0.076 m² / 48L : 0.17 m²

Protective disc

ESG toughened safety glass or cover with 4 mm thickness made of transparent polycarbonate, UV-coated

Housing

Very high mechanical, chemical and corrosion resistance
Die-cast aluminium housing (AlSi12 with low copper content)
Special coating for enhanced and long-lasting corrosion protection in chlorine- and salt-laden environments
Paint finish depending on version: black RAL 9005 or white RAL 9010

Sealing

IP65

IK rating

48M : IK08
48L : IK09

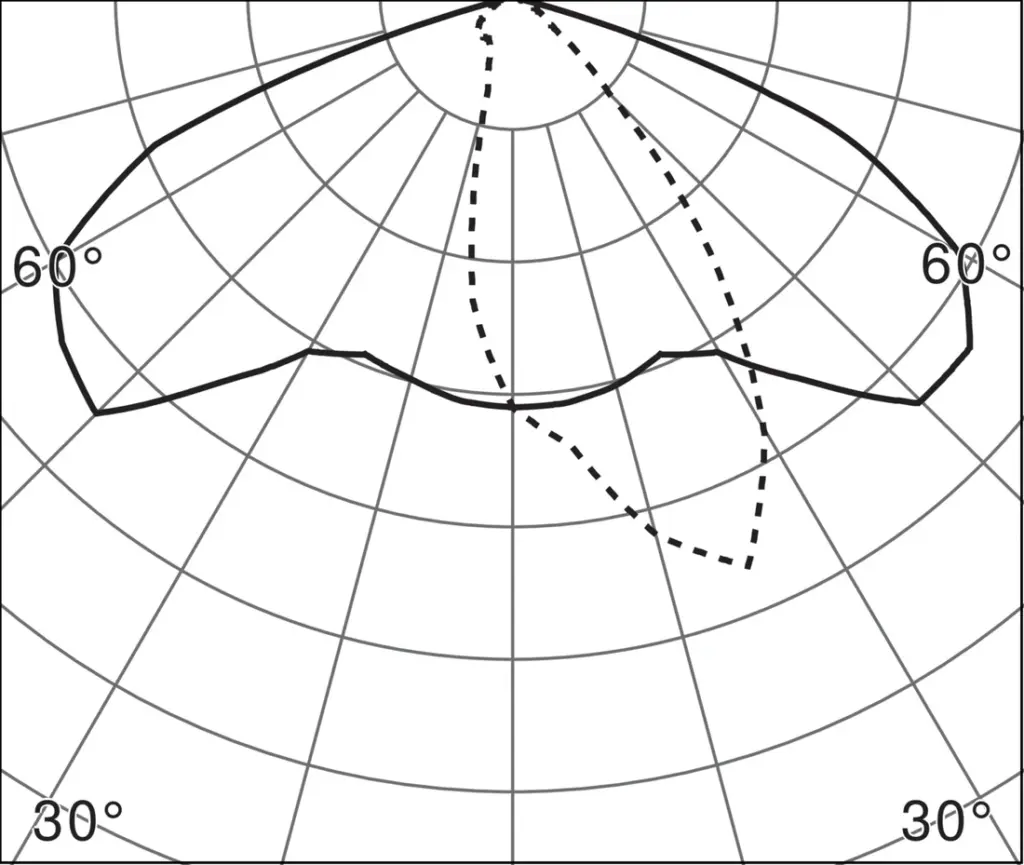

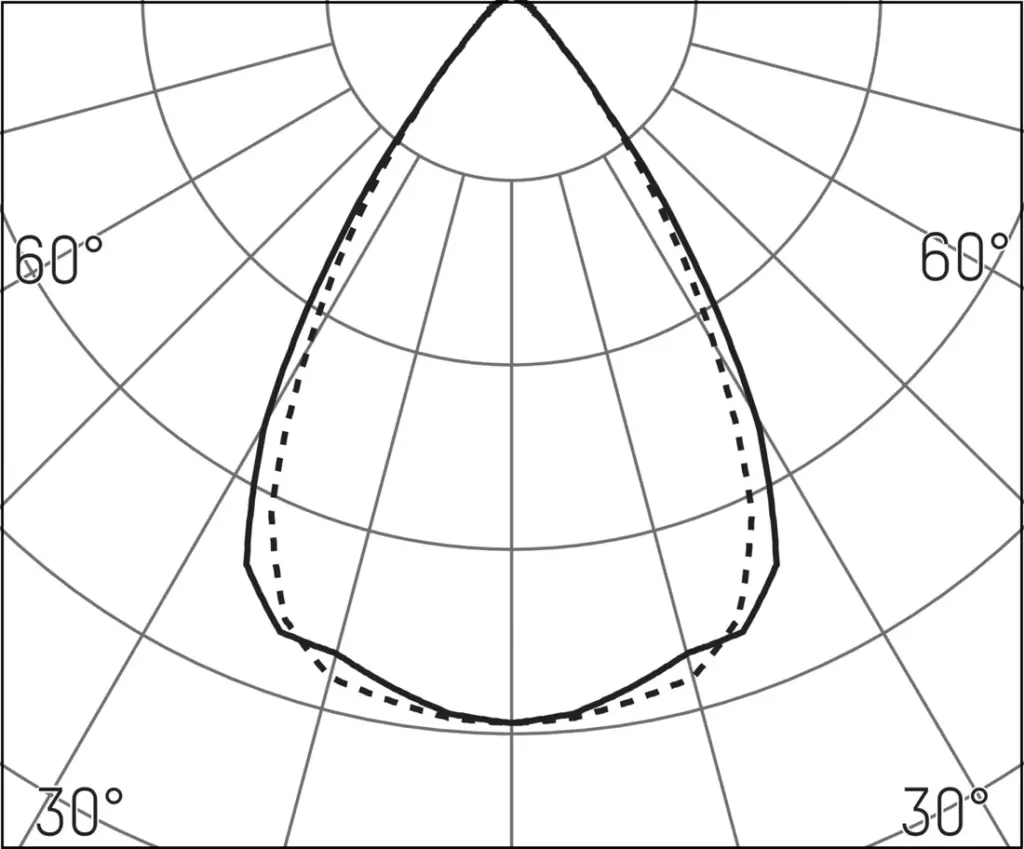

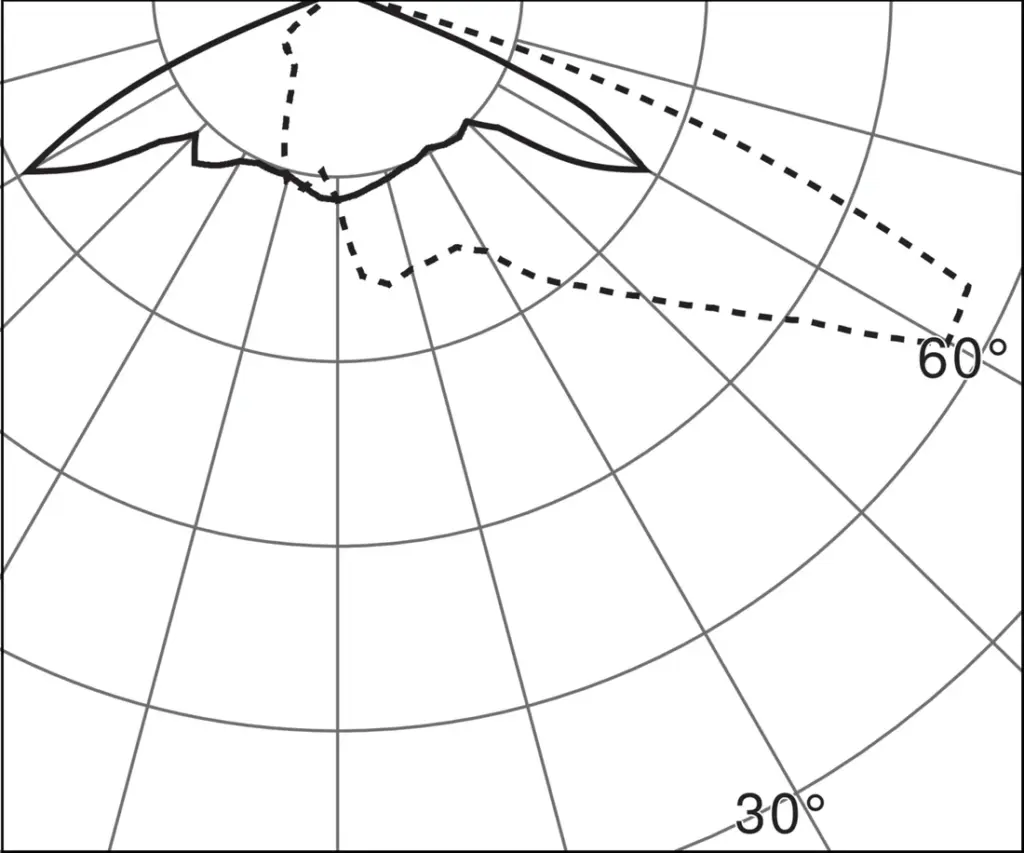

Asymmetrical light distribution, narrow beam (AS125-67)

Asymmetric light distribution batwing (AS120-23)

Wide flood 65° (WB65) Other light distribution available: please contact us
